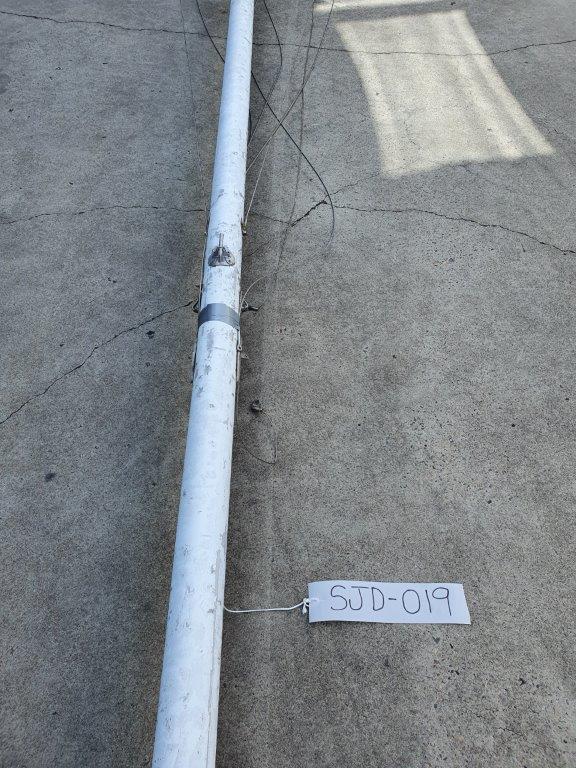

SJD-019

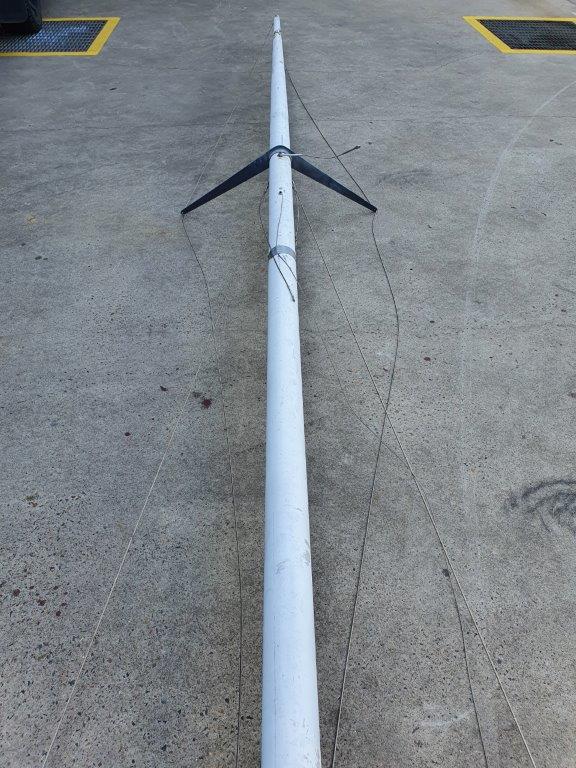

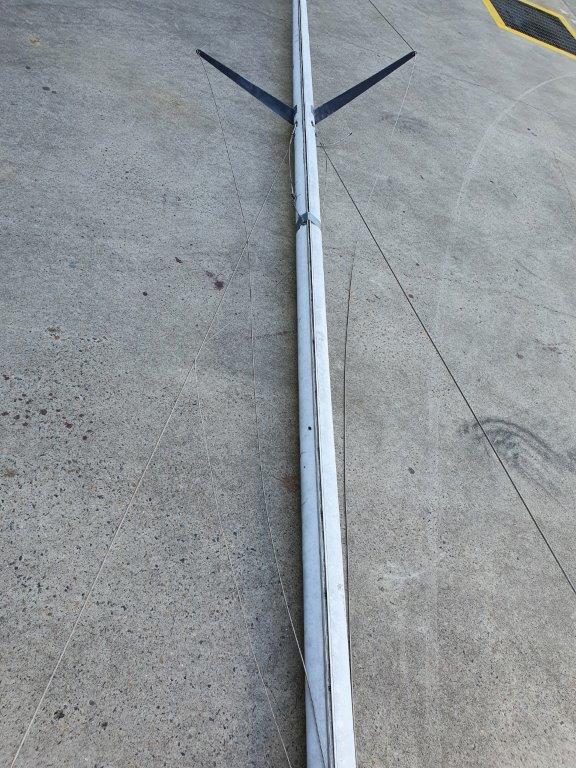

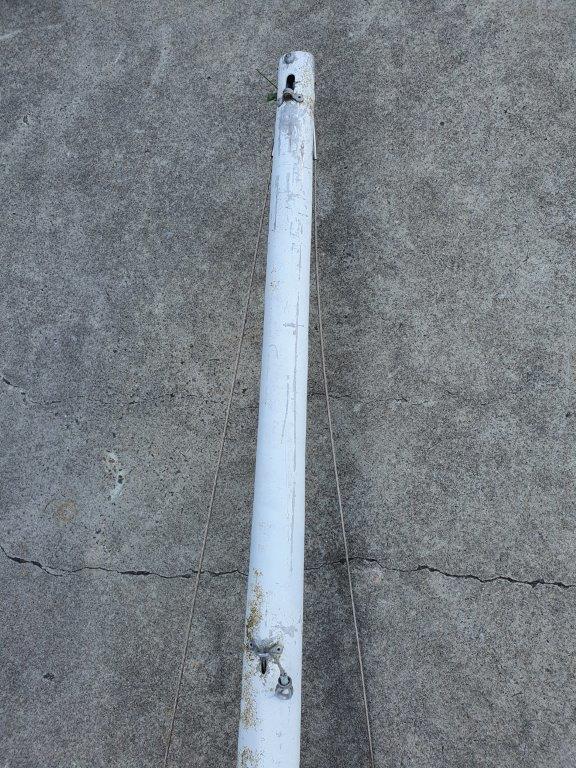

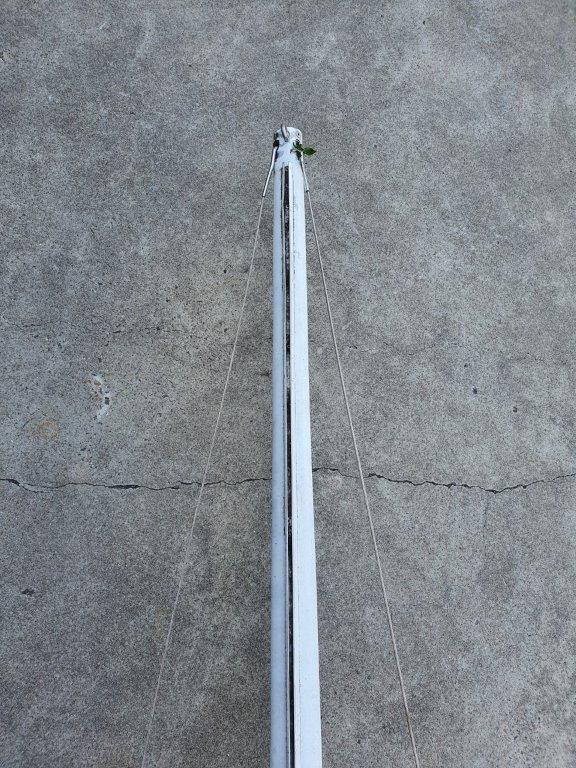

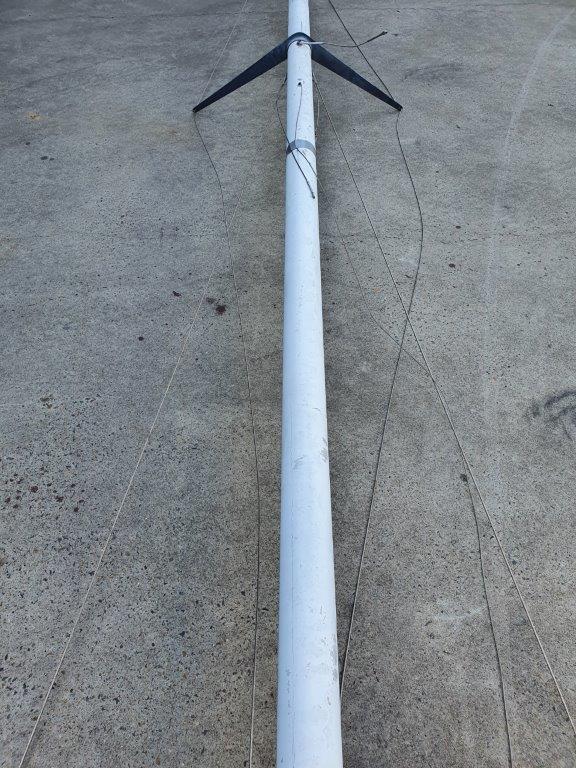

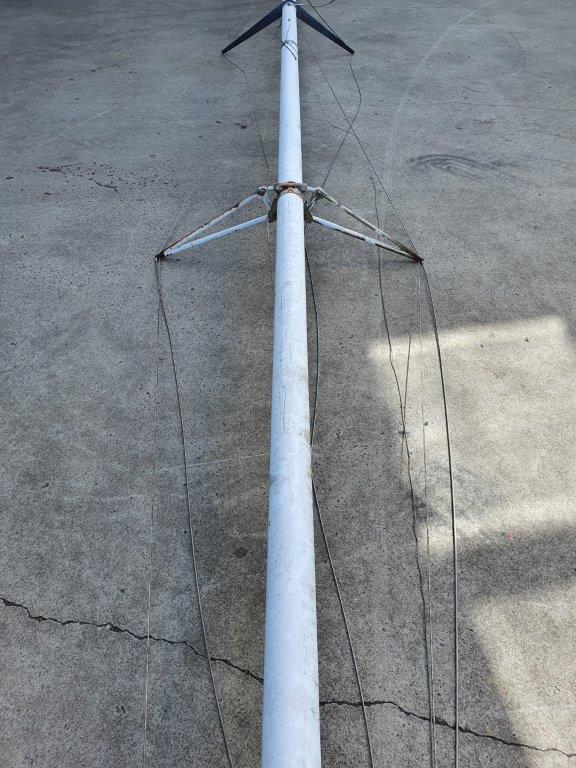

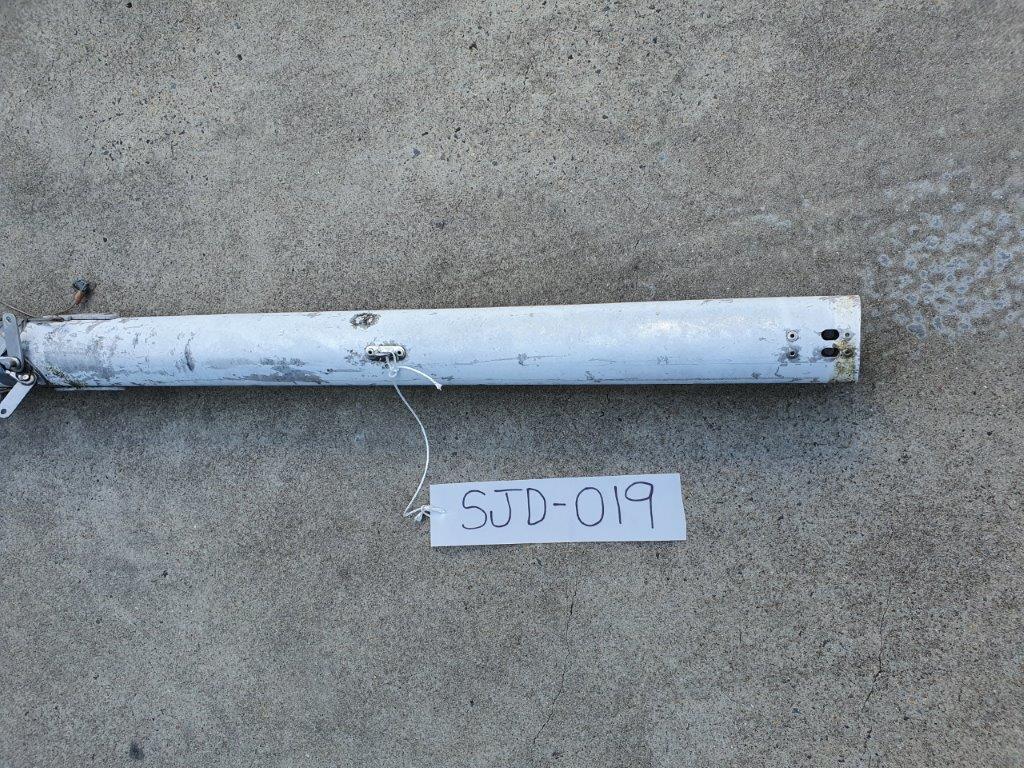

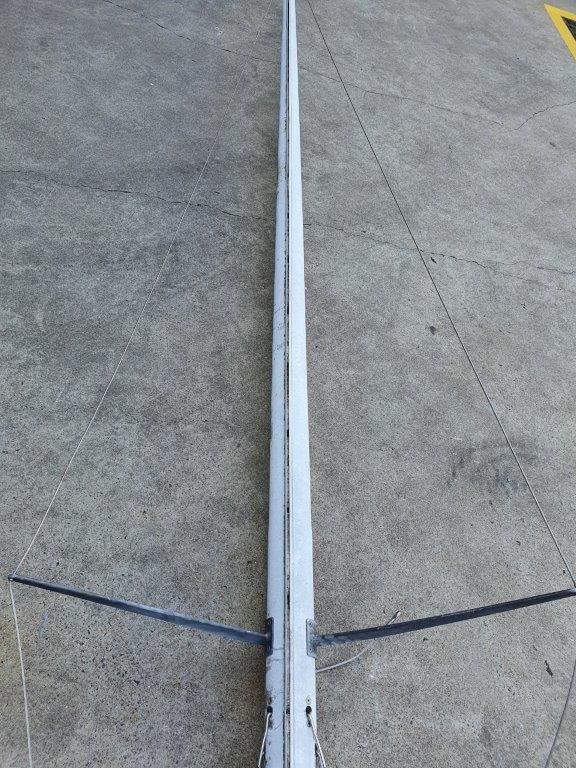

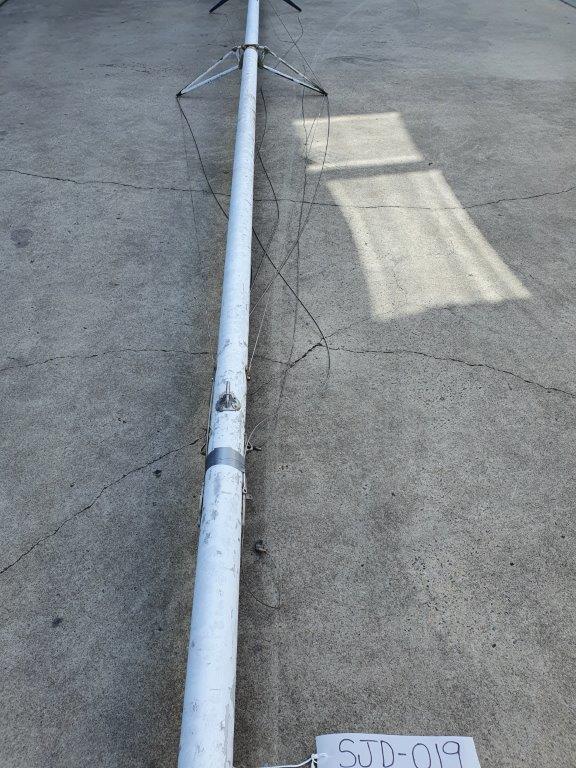

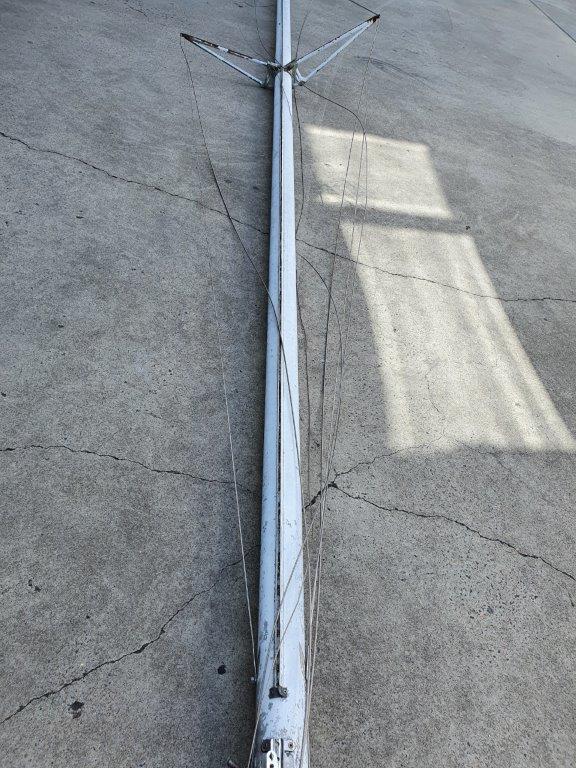

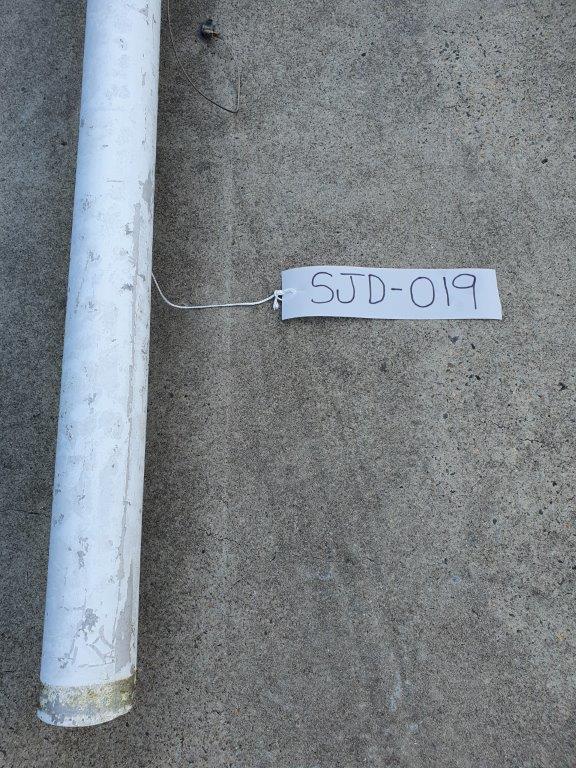

Mast (USED) #SJD-019 Length: 9.58m

PLEASE ONLY DUPLICATE THIS PRODUCT

Construction (Rig)
Extrusion
Material
Alloy
Anodised
Yes
Paint No
Colour
White
Overall mast length measurement (X)
Fore & aft section measurement (Y)

Athwartships section measurement (Z)

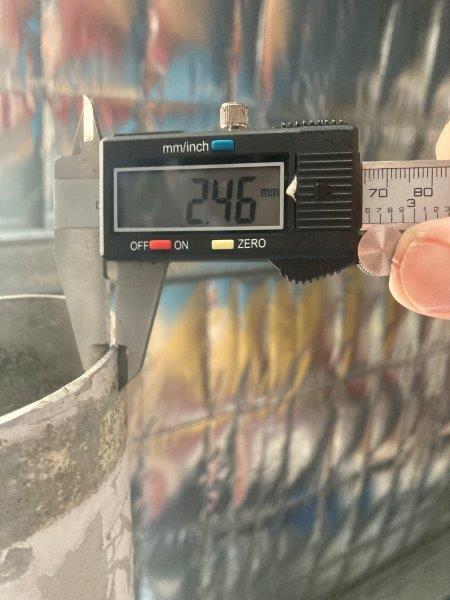

Wall Thickness
Distance from mast step (butt) to deck (datum)

Distance from datum to boom vang fitting

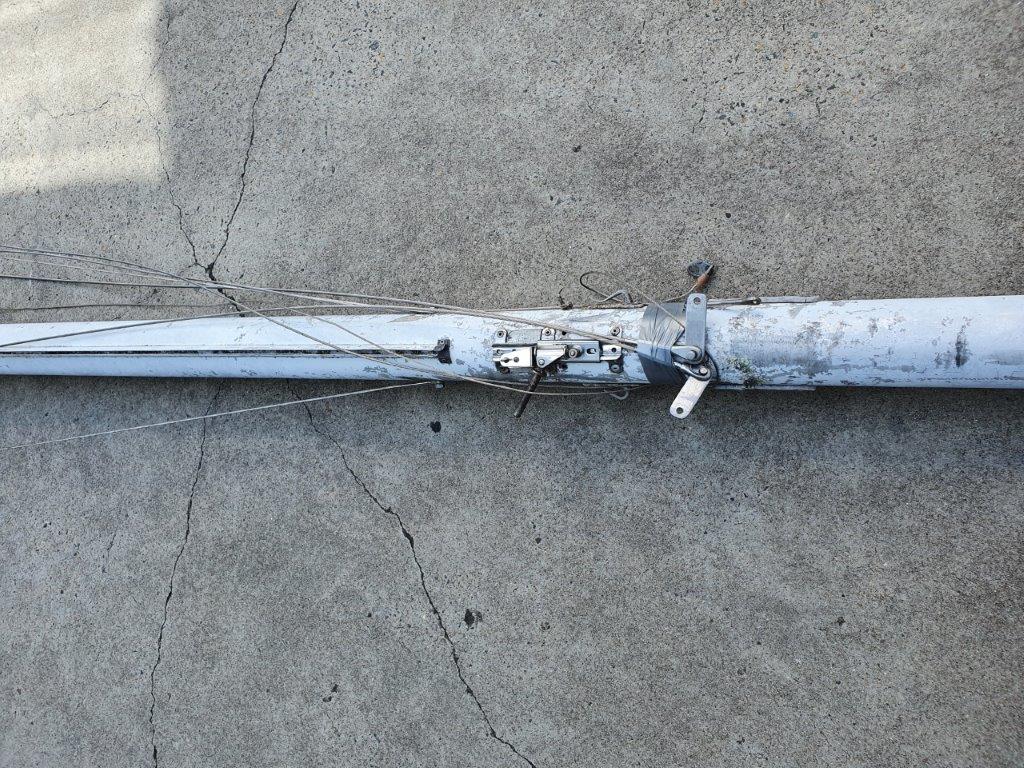

Distance from datum to boom gooseneck fittting 1.17m

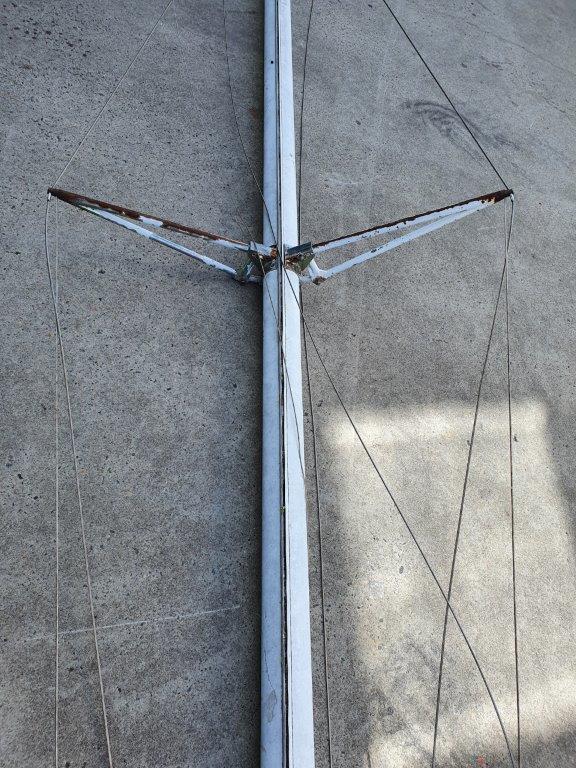

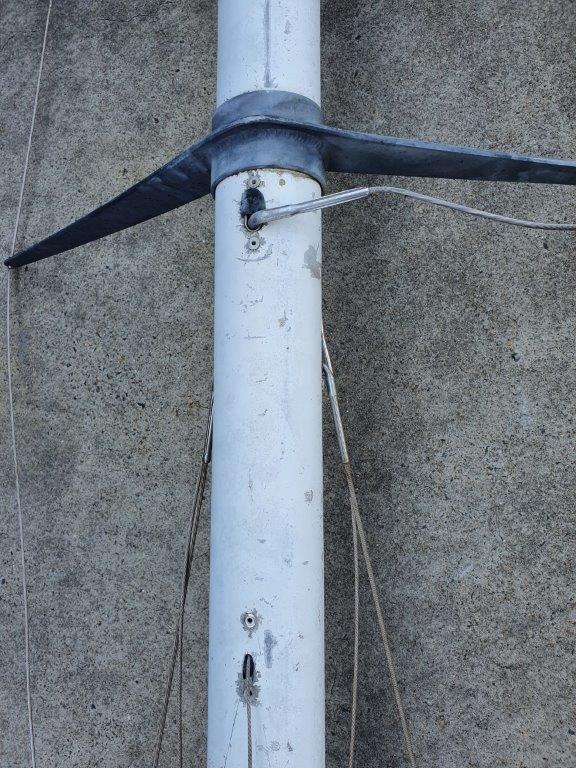

Distance from datum to1st spreader 4.35m
Distance from datum to 2nd spreader 6.78m
Distance from datum to 3rd spreader
Distance from datum to 4th spreader
Distance from datum to mast head
Distance from datum to topping lift sheave
Distance from datum to genoa sheave
Distance from datum to spin halyard sheave 9.54m
Distance from datum to main halyard sheave
Distance from datum to forestay attachment
6.7m
Distance from datum to backstay attachment
Distance from datum to lowers attachment
Mast track profile
Mast track sail slide part #
Distance from datum to spin pole car track
Length of pole car track
Pole track profile
Pole track slide part #
Sheaves scored for wire or rope
Sheave diameters
