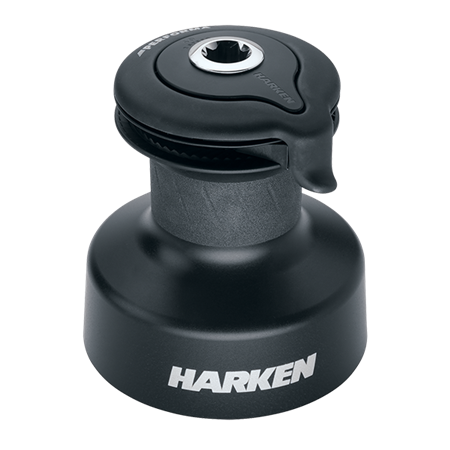

Harken 40 Self-Tailing Performa™ Winch — 2 Speed

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications

  • Base Ø (mm) 157
  • Drum Ø (mm) 80
  • Fasteners (mm) 6 HH;6 SH
  • Gear ratio - 1 2.13
  • Gear ratio - 2 6.28
  • Height (mm) 175
  • Line entry height (in) 3 1/4
  • Line entry height (mm) 82
  • Material C;A
  • Maximum line Ø (mm) 12
  • Minimum line Ø (mm) 8
  • Number of fasteners 5
  • Power ratio - 1 13.5
  • Power ratio - 2 39.9
  • Weight (kg) 3.8
