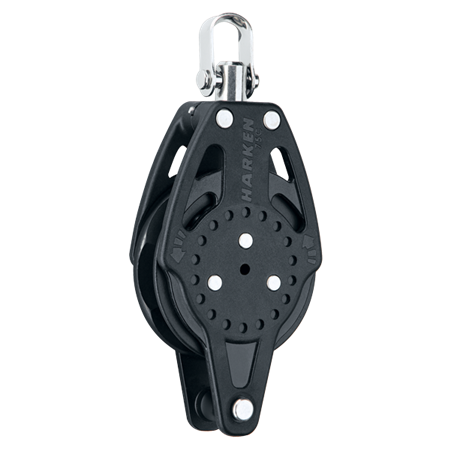

Harken 75 mm Ratchamatic® Carbo Air® Block — Swivel, Becket

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.


  • Breaking load (kg) 1361
  • Length (mm) 165
  • Maximum line Ø (mm) 12
  • Maximum working load (kg) 341
  • Shackle pin Ø (mm) 6
  • Sheave Ø (mm) 75
  • Weight (g) 255
