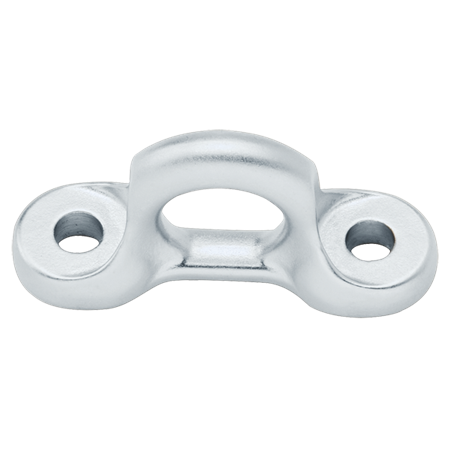

Harken SB Cast Padeye Bail

Specifications

• A (mm) 56
• B (mm) 18
• Breaking load - angle 1 (kg) 2313
• Breaking load - angle 2 (kg) 2172
• Breaking load - angle 3 (kg) 2222
• Fasteners (mm) 6
• G (mm) 16
• Length (mm) 56
• Max Working Load angle 1 (kg) 1156
• Max Working Load angle 2 (kg) 1086
• Max Working Load angle 3 (kg) 1111
• Weight (g) 38
