harken-40RWA24H

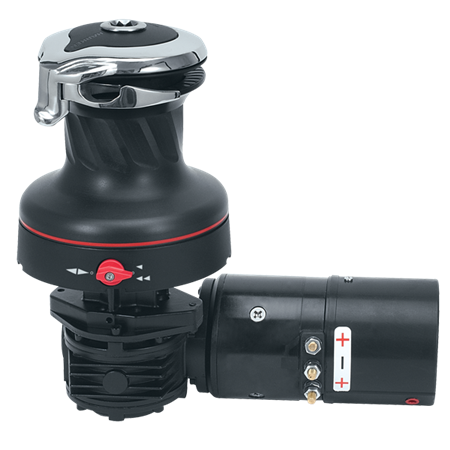

Harken 40 Electric Self-Tailing Rewind™ Radial Winch — Reverse Speed, 24V

Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control.

Specifications

  • Base Ø (mm) 157
  • Drum Ø (mm) 80
  • Fasteners (mm) M6 HH;M6 SH
  • G (mm) 280
  • Gear ratio - 1 2.13
  • Gear ratio - 2 6.28
  • Height (mm) 175
  • Line entry height (in) 3 1/4
  • Line entry height (mm) 82
  • Material Aluminum
  • Maximum line Ø (mm) 12
  • Minimum line Ø (mm) 8
  • Number of fasteners 5
  • Power ratio - 1 13.5
  • Power ratio - 2 39.9
  • Spare Parts BK4512;BK4517
  • Weight (kg) 14.6
