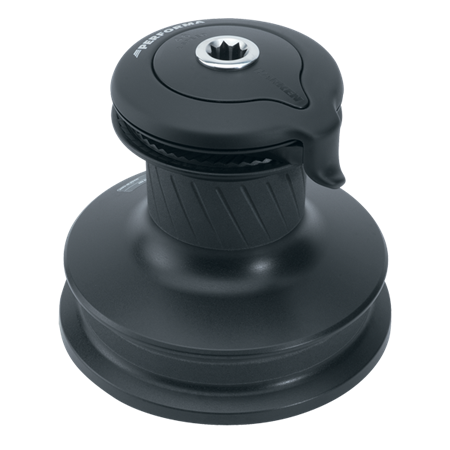

Harken 40 Self-Tailing Quattro Performa™ Winch — 2 Drum, 2 Speed

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. The Quattro model is an all-in-one aluminum winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind. The 2-speed Quattro features two drum diameters and four line speeds.

Specifications

  • Base Ø (mm) 180
  • Drum Ø (mm) 80
  • Drum Ø lower (mm) 154
  • Fasteners (mm) M6 HH;M6 SH
  • Gear ratio - 1 2.13
  • Gear ratio - 2 6.28
  • Height (mm) 175
  • Line entry height (in) 3 1/4
  • Line entry height (mm) 82
  • Material A
  • Maximum line Ø (mm) 12
  • Minimum line Ø (mm) 8
  • Number of fasteners 5
  • Power ratio - 1 13.5
  • Power ratio - 2 39.9
  • Weight (kg) 4.6
