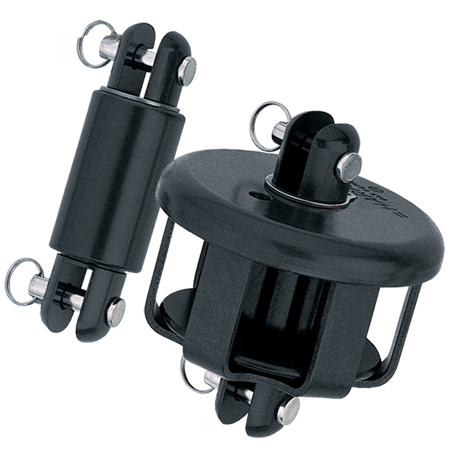

Harken Low-Load Small Boat Furling System — 3 mm Luff Wire

Harken® Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit. An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.


  • Boat length - monohull (m) Under 4.9
  • Clevis pin Ø (mm) 6.4
  • Drum Ø (mm) 73
  • Includes drum 163
  • Includes upper swivel 162
  • Jaw width (mm) 8
  • Maximum line Ø (mm) 4
  • Maximum luff wire Ø (mm) 3
  • Maximum working load (kg) 227
  • Pin-to-pin length (mm) 64
  • Weight (g) 215
