harken-50-2STEA12H

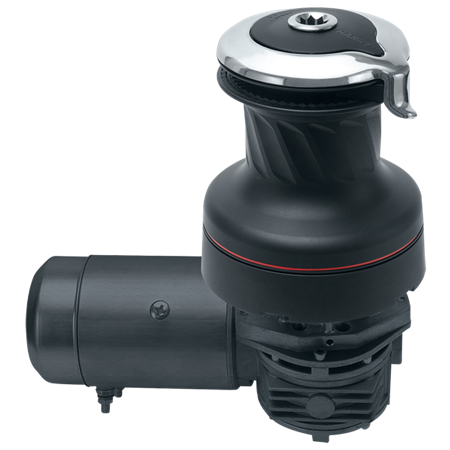

Harken 50 Electric Self-Tailing Radial Winch — 2 Speed, 12V, Horizontal

Electric Radial winches let you relax in luxury and trim any size sail with the push of a button.

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.

Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets.

Efficient design allows smaller motor size.

Specifications

  • Base Ø (mm) 194
  • Drum Ø (mm) 110
  • Fasteners (mm) M8 HH;M8 SH
  • G (mm) 244
  • Gear ratio - 1 2.4
  • Gear ratio - 2 10.9
  • Height (mm) 212
  • Line entry height (in) 3 7/8
  • Line entry height (mm) 97
  • Material Aluminum
  • Maximum line Ø (mm) 14
  • Minimum line Ø (mm) 8
  • Motor weight (kg) 10.8
  • Number of fasteners 5
  • Power ratio - 1 10.9
  • Power ratio - 2 50.4
  • Spare Parts BK4512;BK4517
  • Weight (kg) 6
