harken-60RWA12H

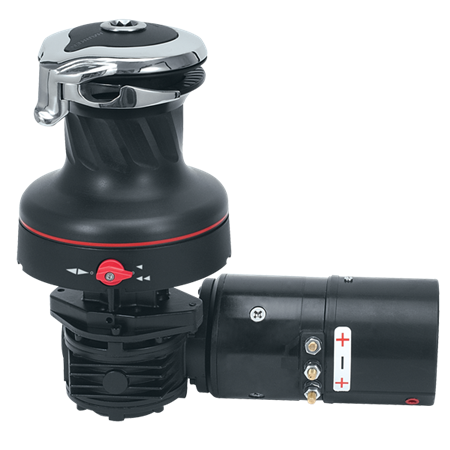

Harken 60 Electric Self-Tailing Rewind™ Radial Winch — Reverse Speed, 12V

Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control.

Specifications

  • Base Ø (mm) 236
  • Drum Ø (mm) 120
  • Fasteners (mm) M8 HH;M8 SH
  • G (mm) 280
  • Gear ratio - 1 4.8
  • Gear ratio - 2 14.4
  • Height (mm) 246
  • Line entry height (in) 4 9/16
  • Line entry height (mm) 116
  • Material Aluminum
  • Maximum line Ø (mm) 16
  • Minimum line Ø (mm) 14
  • Number of fasteners 6
  • Power ratio - 1 20.3
  • Power ratio - 2 61
  • Spare Parts BK4512;BK4517
  • Weight (kg) 22.1
