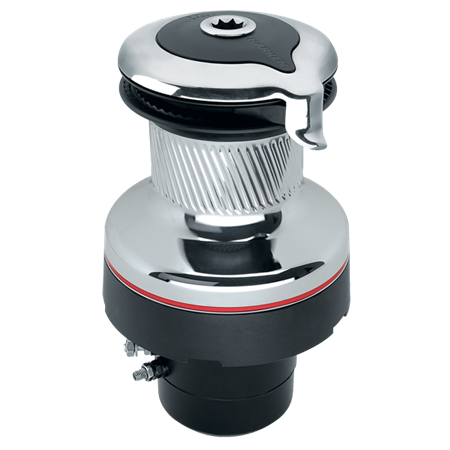

Harken 900 Electric UniPower Self-Tailing Radial Winch — 24V

The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12- or 24-volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8 inches) below the winch base—a critical feature for small boats where space under the cabin top is limited. Composite roller bearings reduce friction under load and don’t require lubrication. Gears are 17-4PH stainless steel for strength and durability.

Harken recommends the single function digital switch DSSBK and circuit breaker HCP1717. Sold separately.


  • Base Ø (mm) 190
  • Drum Ø (mm) 110
  • Fasteners (mm) M8 HH;M8 SH
  • G (mm) 140
  • Height (mm) 215
  • Line entry height (in) 3 15/16
  • Line entry height (mm) 100
  • Material Chrome
  • Maximum line Ø (mm) 14
  • Maximum pull (kg) 900
  • Minimum line Ø (mm) 8
  • Number of fasteners 5
  • Spare Parts BK4512;BK4517
  • Weight (kg) 14.5
