MAST (USED) 8.44 mtrs #ANP-001

MAST (USED) 8.44 mtrs #ANP-001

SKU:

$1,395.00 - $1,395.00
$1,395.00
$1,395.00 - $1,395.00
$1,395.00

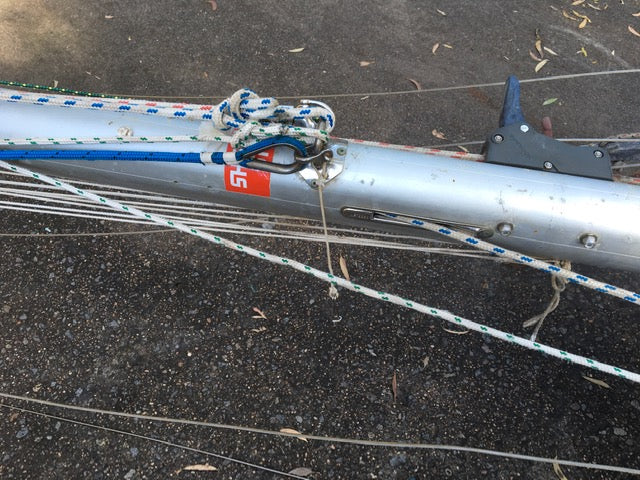

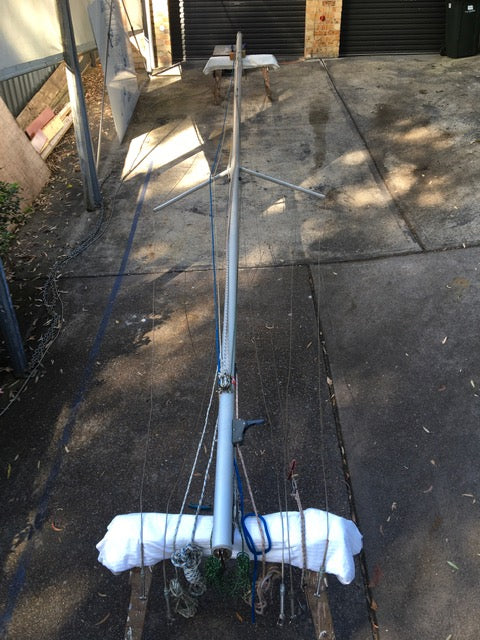

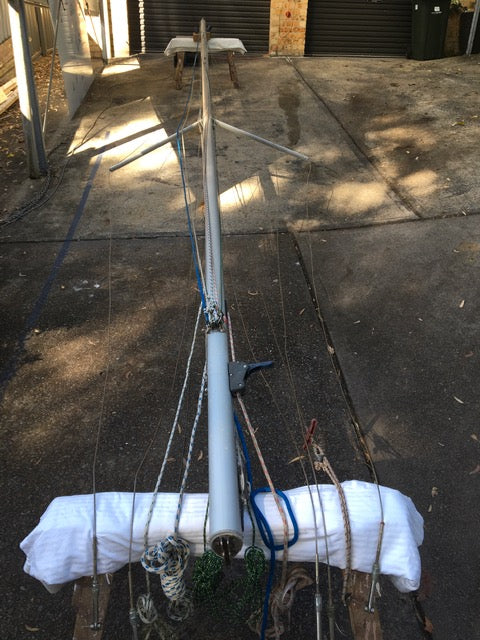

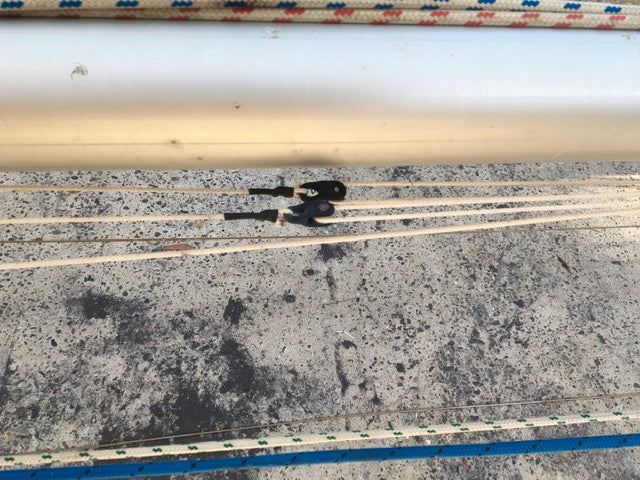

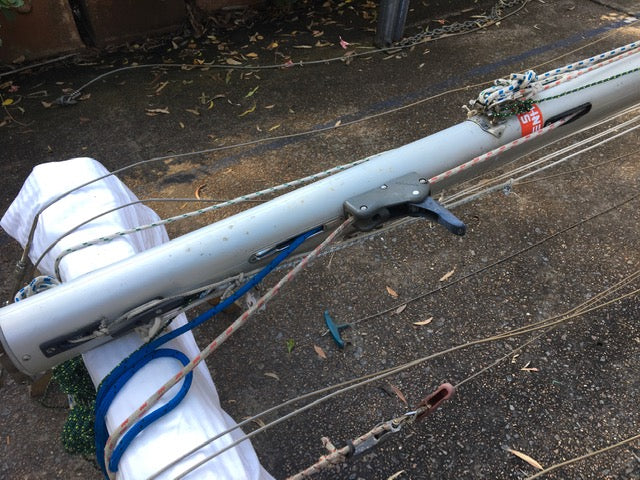

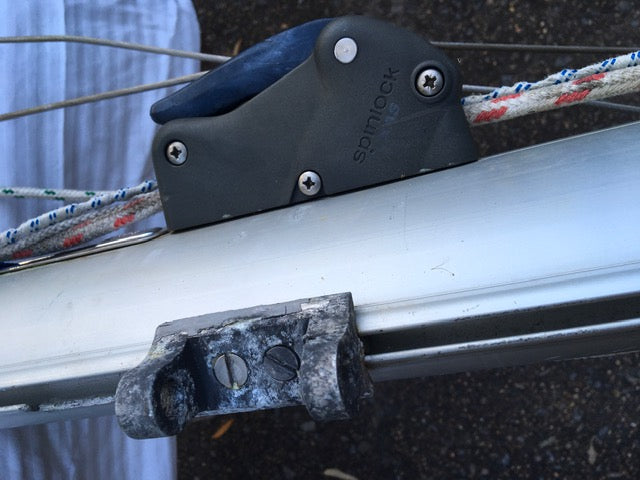

This alloy mast is fitted with rope halyards for main, jib, 2 spinnakers (one @ masthead), with Spinlock jammer for jib (or halyard tails can be switched to use jammer for other halyards).

- trapeze wires fitted but the prime use for these was to stabilise the mast for raising and lowering.

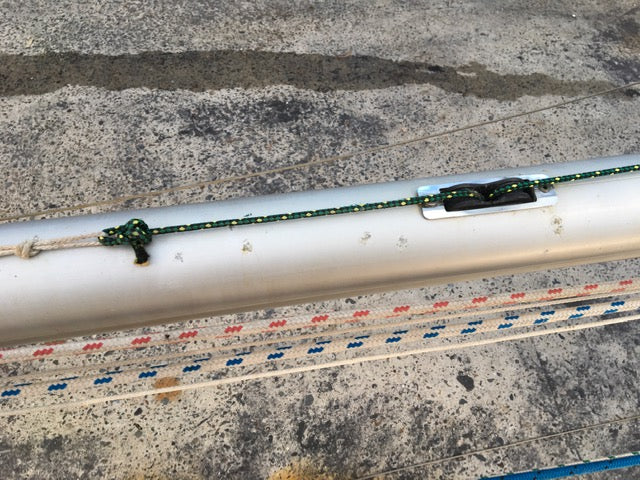

- lazy jacks fitted, easily removed if not required.

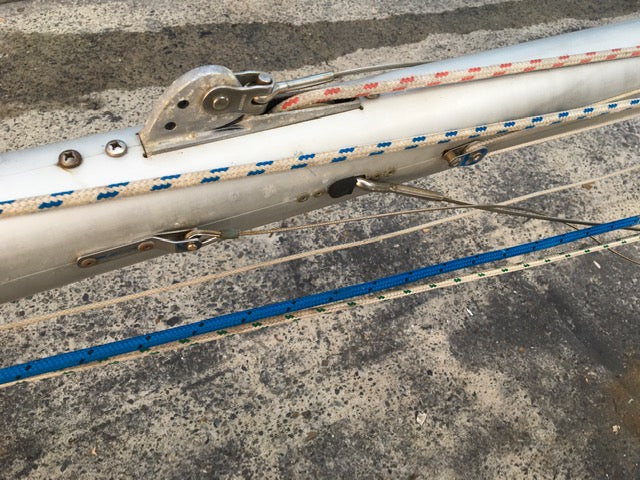

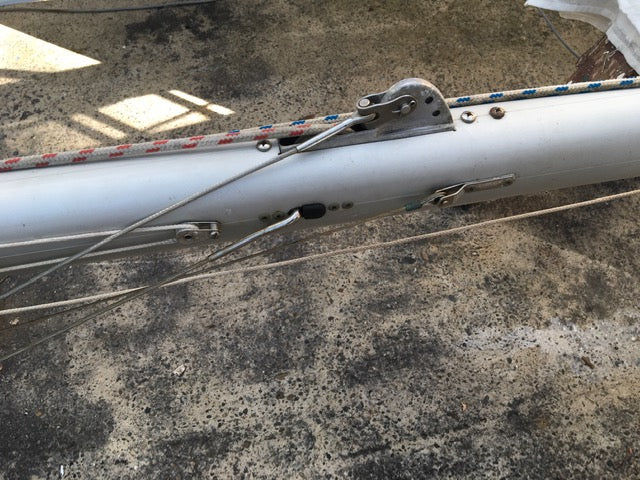

- spinnaker-pole topping lift fitted. There is a spinnaker-pole ring fitted.

- masthead burgee halyard fitted which would serve as a boom topping lift.

- attachment at the masthead for a back stay if required.

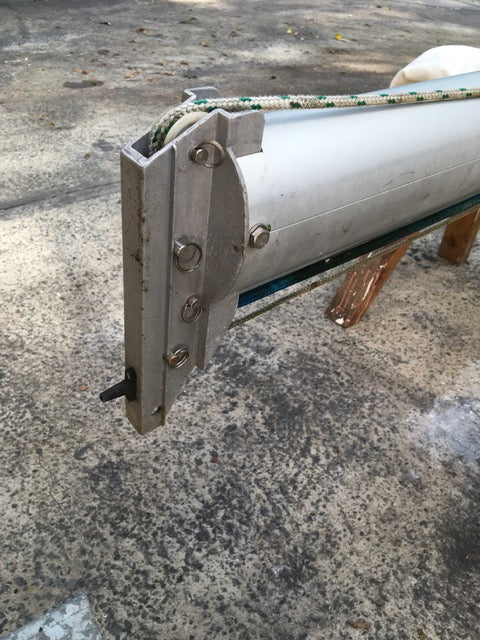

- Vang attaches to an eye on the mast-base fitting.

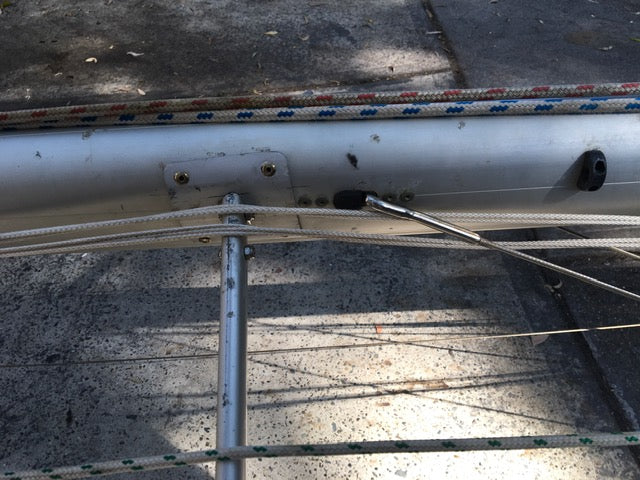

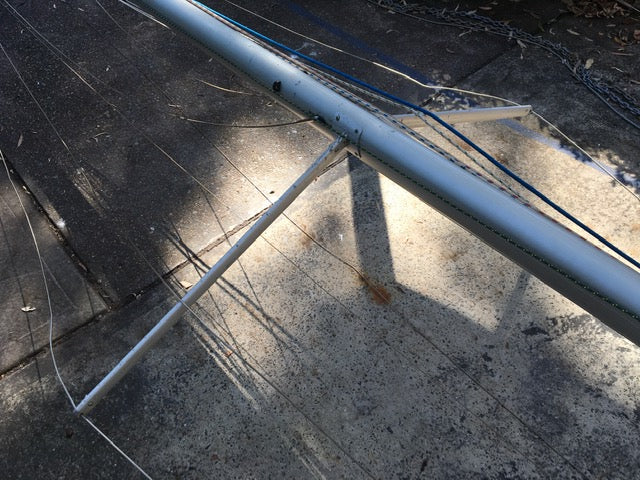

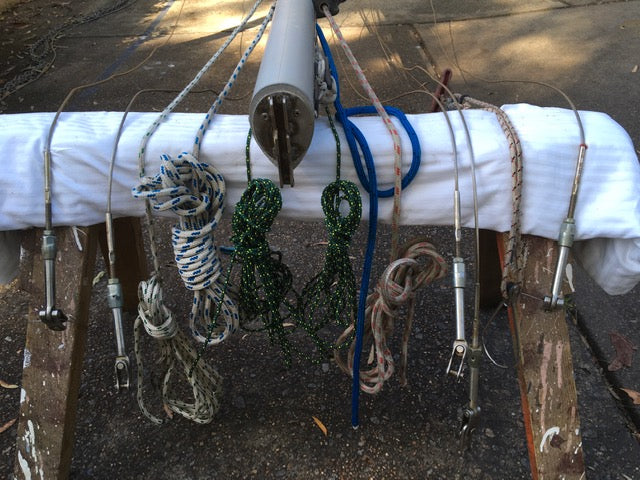

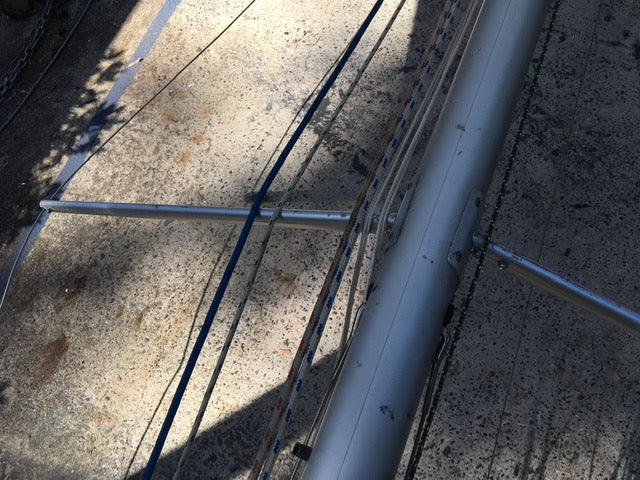

- Standing rigging comprises mainstays through swept-back spreaders, lowers and forestay, all with turnbuckles.

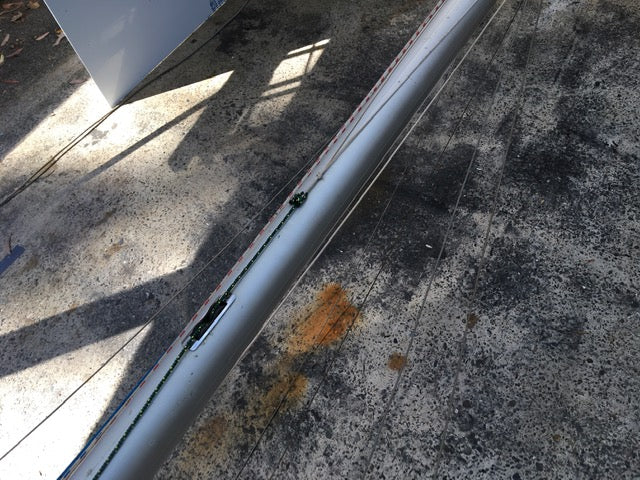

-.Mast track can take boltrope or slides
Located in Salamander Bay NSW.  Purchaser to arrange freight.
No free freight.
Construction (Rig)
 Extrusion
Material
 Alloy
Anodised
 no
Paint  no
Colour
 Silver
Overall mast length measurement (X)  8440mm
Fore & aft section measurement (Y)
 115mm
Athwartships section measurement (Z)
 75mm
Wall Thickness  4mm (front) 2mm (sides)
Distance from mast step (butt) to deck (datum)
 n/a
Distance from datum to boom vang fitting
 10mm
Distance from datum to boom gooseneck fitting  520mm
Distance from datum to1st spreader  3480mm

Distance from datum to 4th spreader
Distance from datum to mast head  8440mm
Distance from datum to topping lift sheave  5320mm
Distance from datum to genoa sheave  6840mm
Distance from datum to spin halyard sheave 1) 7290mm 2) 8450mm
Distance from datum to main halyard sheave  8450mm
Distance from datum to forestay attachment 		 6880mm
Distance from datum to backstay attachment  8450mm
Distance from datum to lowers attachment  3380mm
Mast track profile   12mm round
Distance from datum to spin pole ring  775mm
Sheaves scored for wire or rope
  rope
Sheave diameters  50mm (main)
