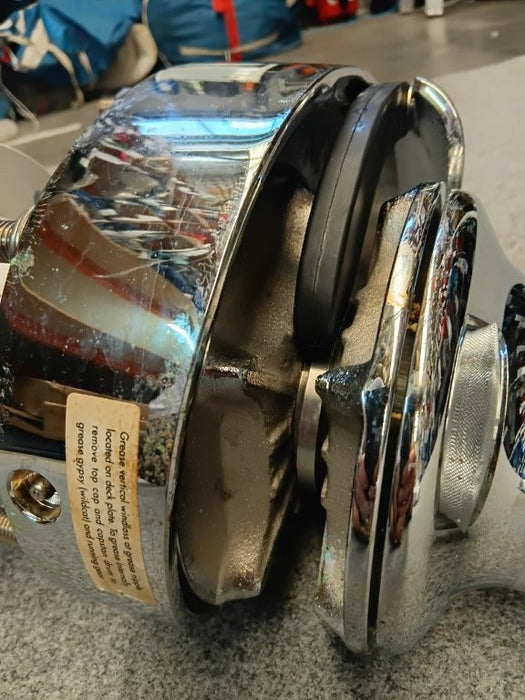

Muir VRC2500 Hydraulic Windlass (New) #RFE-027
Specifications
| Feature | Description |
|---|---|
| General Specifications | |
| SKU | RFE-027 |
| Additional | BAY 101 |

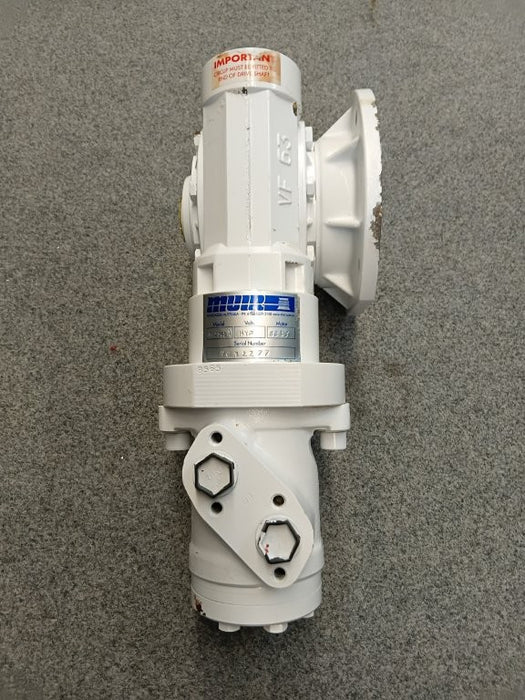

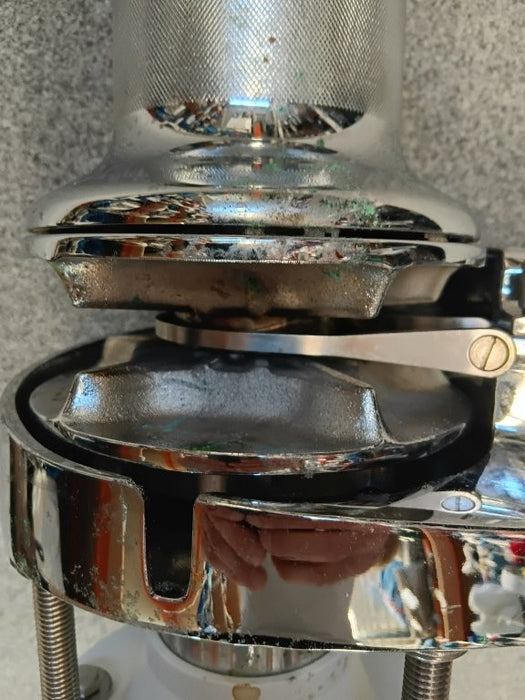

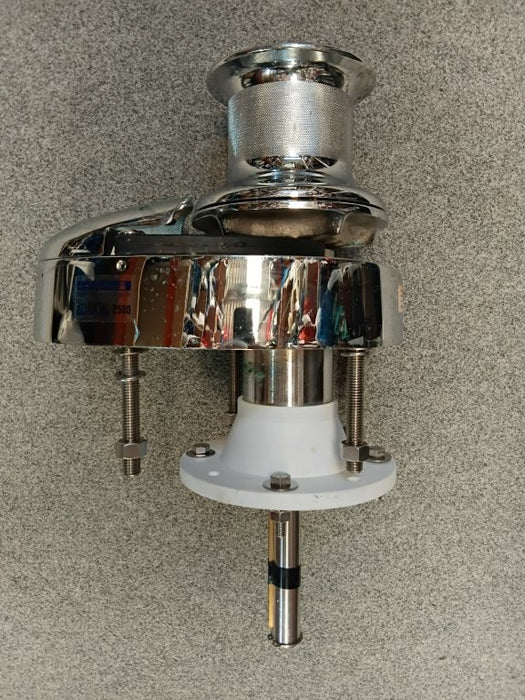

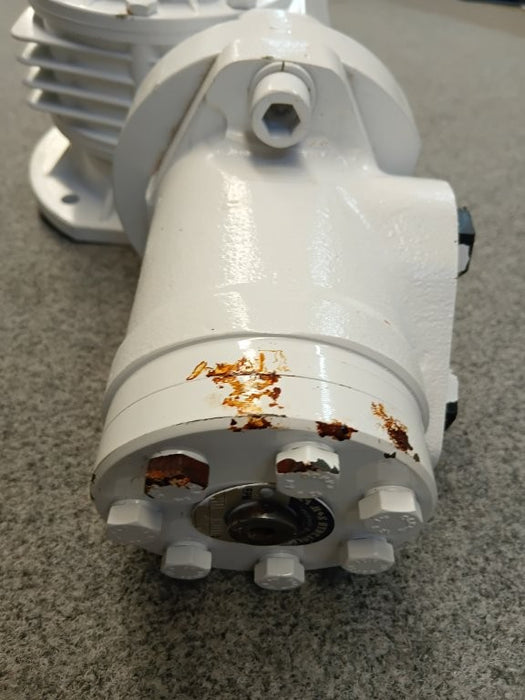

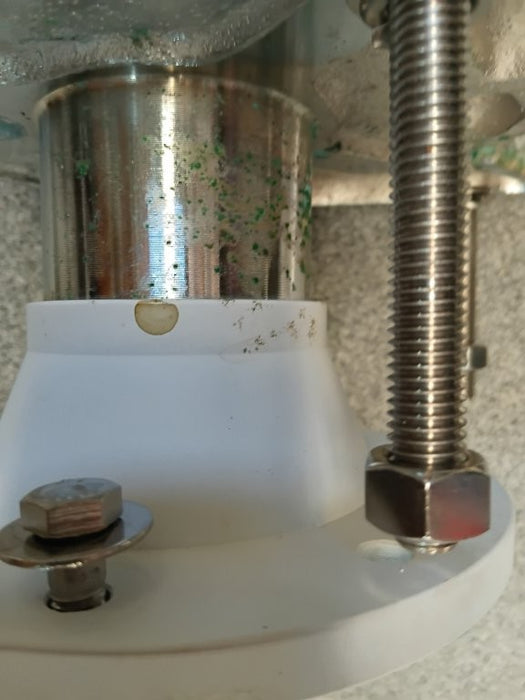

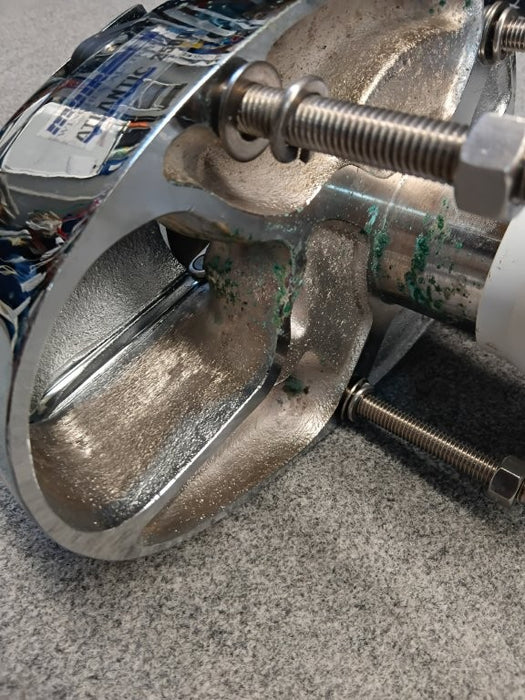

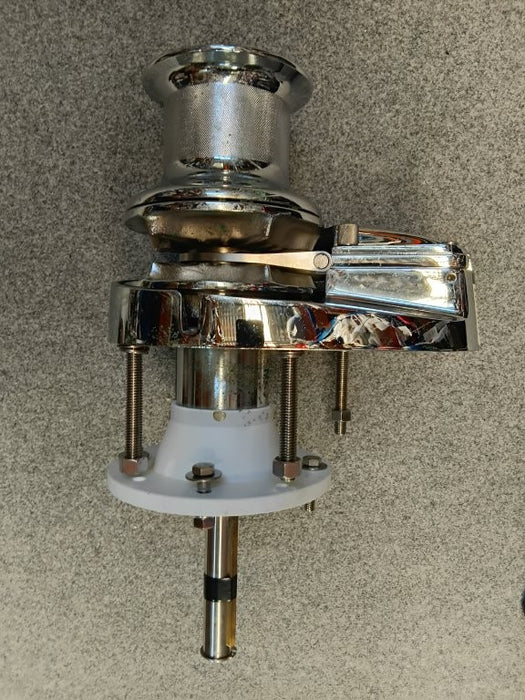

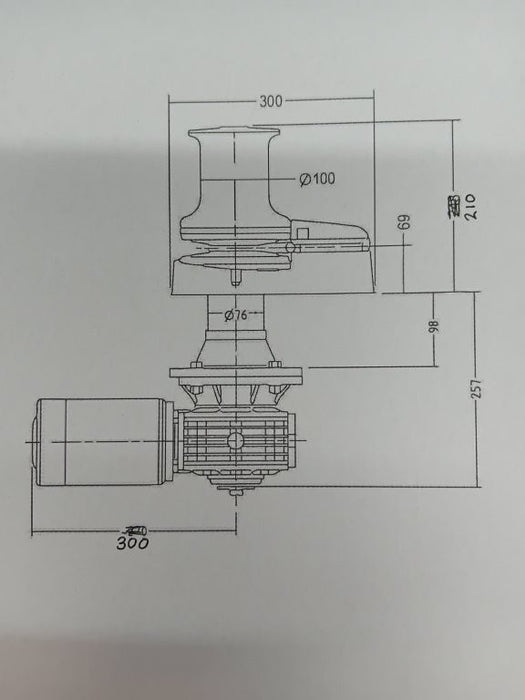

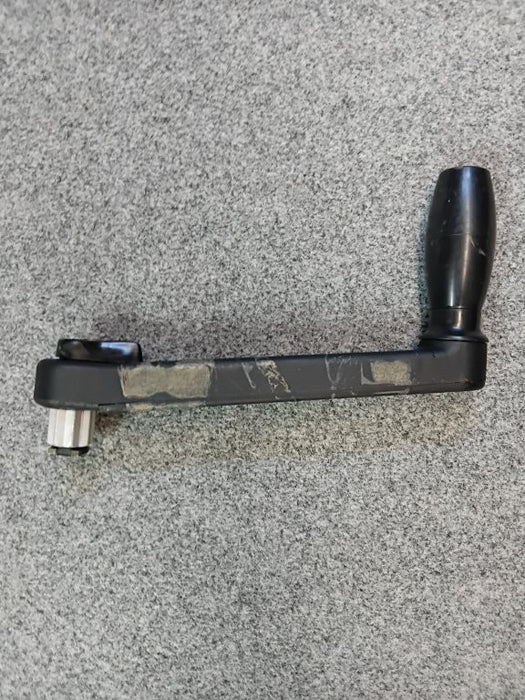

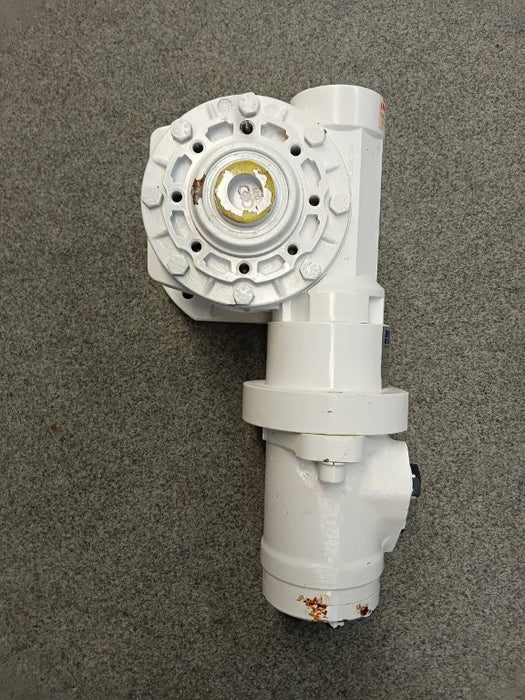

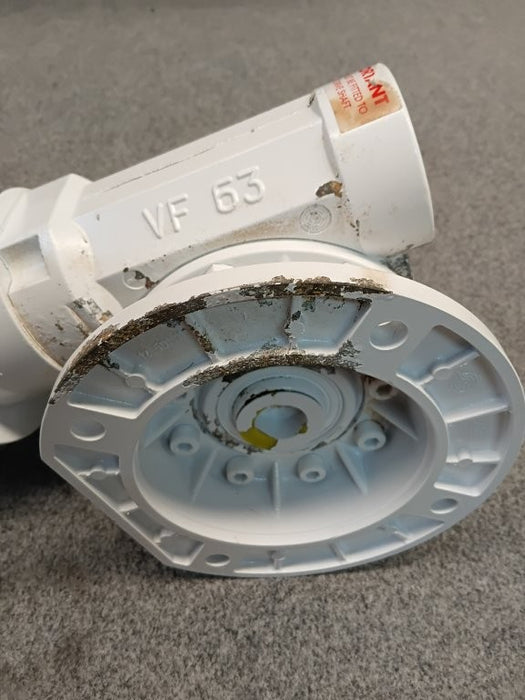

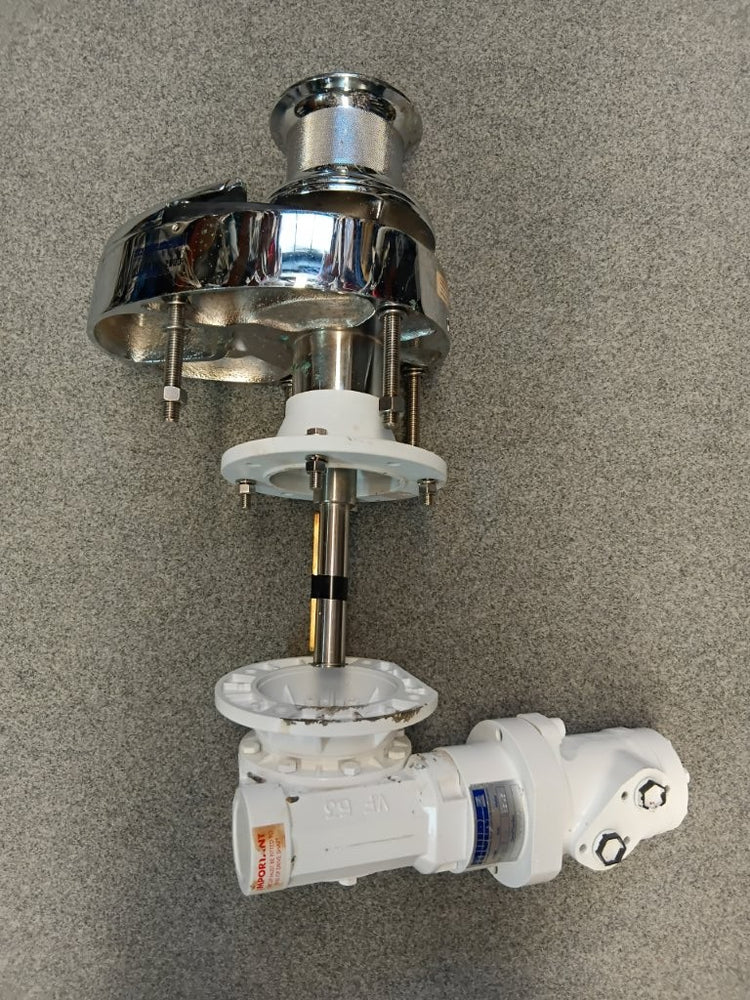

This Muir VRC2500 Vertical Windlass is unused and has never been installed. Suitable for boats 14- 20m. Refer to photos for diagram showing all critical dimensions. There are some small areas of surface corrosion on both parts of the unit due to time in storage (refer to photos). Includes winch handle for manual operation.
Specifications:
Hydraulic pressure - 10 MPa
Hydraulic flow - 20 L/min
Working load - 400 kg
Max load - 1200kg
Max line speed - 28 m/min
Chain sizes - 8 mm, 10, mm, 11 mm, 13 mm (13mm short link Australian standard)
Rope sizes - 14 mm, 16 mm, 20 mm
Rope/chain combo - 8 mm, 10 mm, 13mm

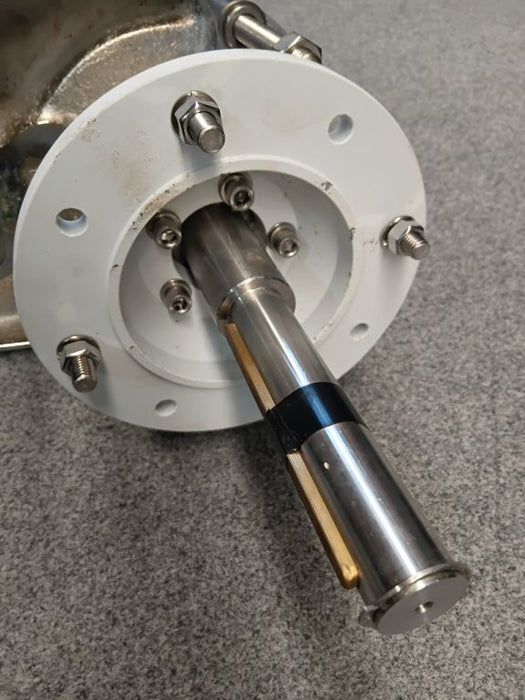

Deck fixings - 4 x 12 mm (refer to photos)
Auto anchor compatible - yes
Weight - 44kg
Features:
- Polished stainless steel above deck
- High tensile stainless steel shaft
- Heavy duty, marine grade, duel-direction motor
- Heavy duty oil bath worm drive gearbox
- Insulated piston rod design for maximum protection against wear and electrolysis
RRP (new) - $5,622AUD
A freight quote will be required due to the weight of the item, CONTACT US for a quote.
Bay - 101
